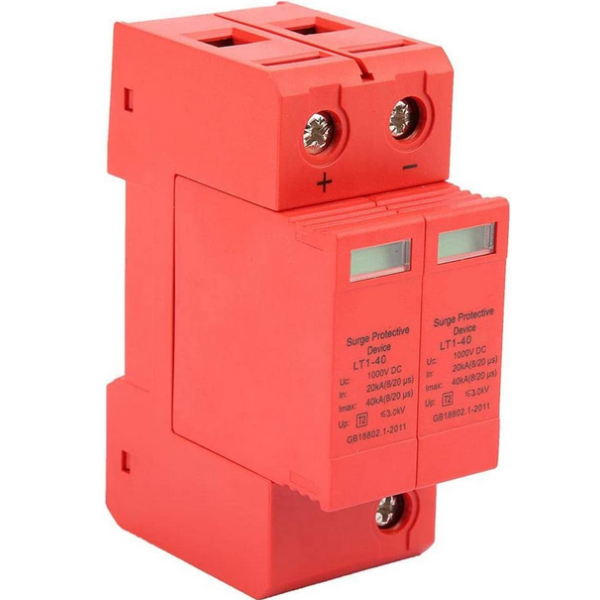

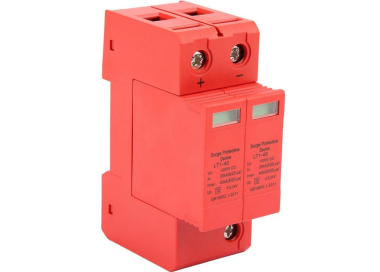

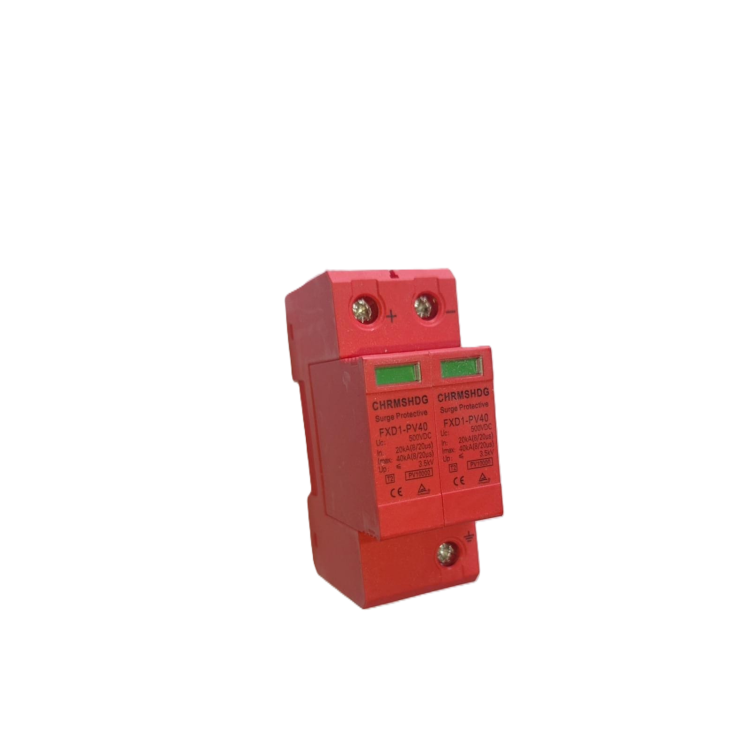

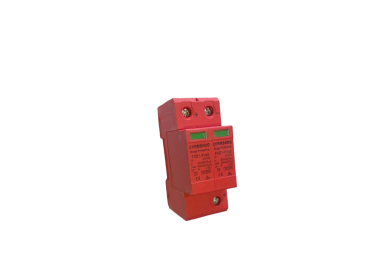

Surge Arrestor / Protección contra rayos
  • Surge Arrestor / Protección contra rayos

Surge Arrestor / Protección contra rayos

44.80 USD
incl. IVA 1
Cantidad
Disponible
0 review(s)
Este dispositivo protege su sistema fotovoltaico con los rayos y descargas atmosfericas. Puede evitar que los equipos conectados como controlador e inversor no se dañen bajo una descarga electrica fuerte.
SurgeArrestor
38 Artículos

Datos Tecnicos:

Nominal PV System Voltage  1000V
SOLAROV [UCPV]  1170Vdc
Max System Discharge Current (8/20 µs) [lmax]  40kA
Voltage Protection Level [UP]  ≤4.0kV
Voltage Protection Level at 5kA [UP]  ≤3.5kV
Integrated Fuse Breaking Capacity/Interrupting Rating  30kV/1000Vdc
Technology  Short-Circuit Interruption (SCI) Overcurrent Protection
Operating Temperature Range [TU]  −40℃ to +80℃
Nominal Discharge Current (8/20 µs) [(DC+/DC−)­­> PE] [In]  12.5kA
Response Time [tA]  <25ns
Operating State/Fault Indication  Green (good)/Red(replace)
Conductor Ratings and Cross­Sectional Area:  Minimum  60/70℃ 1.5mm²/14AWG Solid/Flexible
Maximum  60/70℃ 35mm²/2AWG Stranded/25mm²/4AWG Flexible
Mounting  35mm DIN Rail per EN 60715
Enclosure Material  UL 94V0 Thermoplastic
Degree of Protection  IP20
Capacity  3 Modules, DIN 43880
Standards Information:  IEC 61643­11 Type 2,IEC 61643­1 Class II
Product Warranty  Five Years**
